These are upgrade procedure pictures supplied by Mike Mallory, of 8-Bit Domain.
![S-Video Modification by 8-Bit Domain thumbnail](thumbnails/S-Video Mod_tn.jpg) |

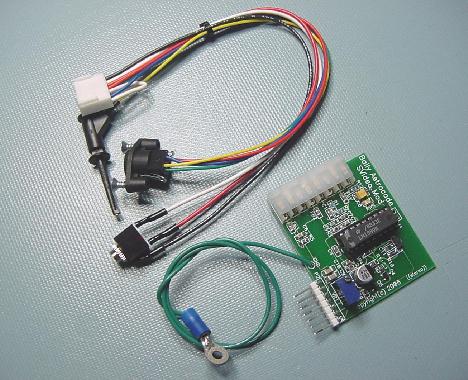

A picture of the S-Video modification. |
![S-Video Modification [2] by 8-Bit Domain thumbnail](thumbnails/S-Video Mod [2]_tn.jpg) |

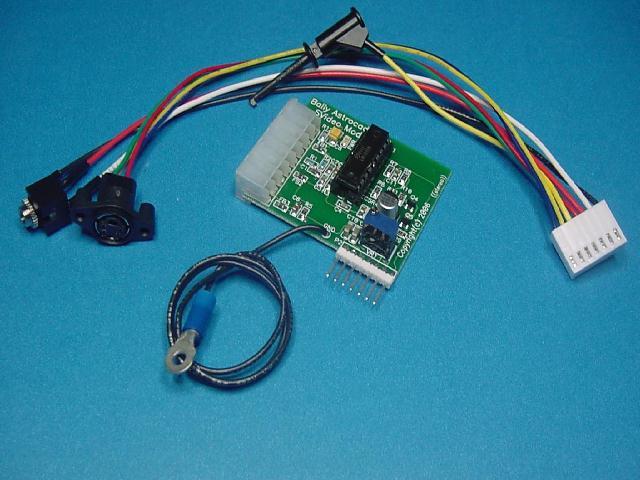

Another picture of the S-Video modification. |
![S-Video Modification [Close-up] by 8-Bit Domain thumbnail](thumbnails/S-Video Mod [Close-up]_tn.jpg) |

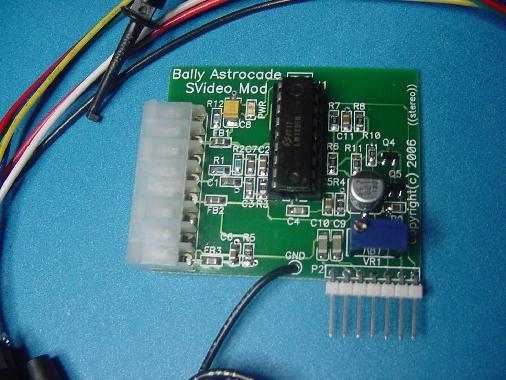

A close-up picture of the S-Video modification's main board. |
![S-Video Modification [Installed in Astrocade] by 8-Bit Domain thumbnail](thumbnails/S-Video Mod [Installed in Astrocade]_tn.jpg) |

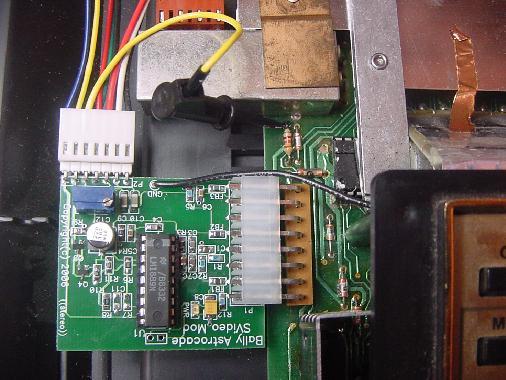

A picture of the S-Video modification installed in the Astrocade. |
![S-Video Modification [Close-up of Resistor Connection] by 8-Bit Domain thumbnail](thumbnails/S-Video Mod [Close-up of Resistor Connection]_tn.jpg) |

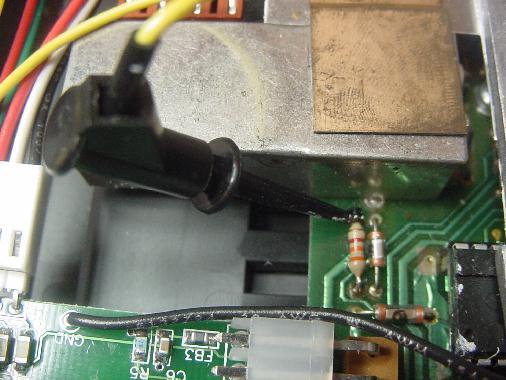

A picture of the S-Video modification with a close-up of the resistor connection. |
![S-Video Modification [Close-up of Ground Connection] by 8-Bit Domain thumbnail](thumbnails/S-Video Mod [Close-up of Ground Connection]_tn.jpg) |

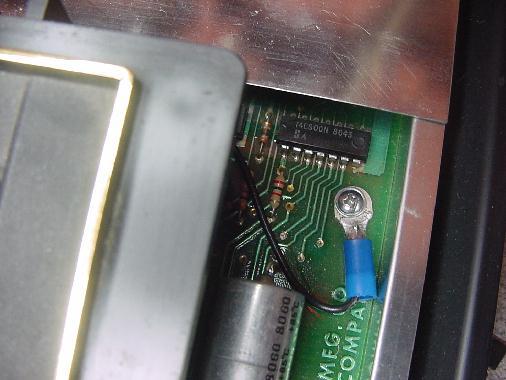

A picture of the S-Video modification with a close-up of the ground connection. |
|
