Sea Wolf II
Arcade Board Pictures

     Pictures of the Sea Wolf II arcade game mainboard. These low-res pictures were taken by Steve using his cell phone. There are two versions of each picture. One version is labeled with descriptions of components on the mainboard and the other is not labeled.

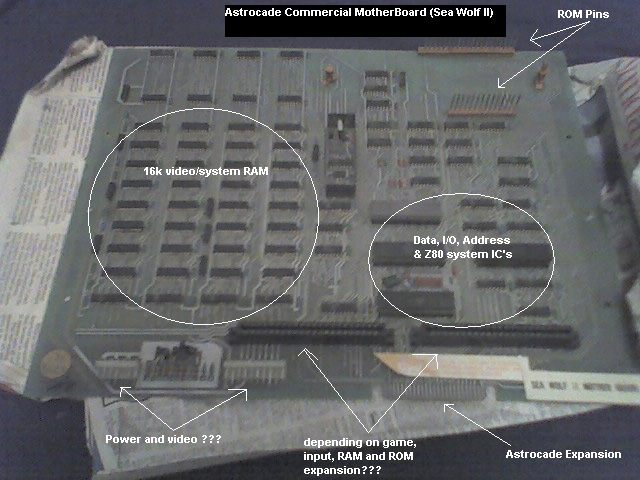

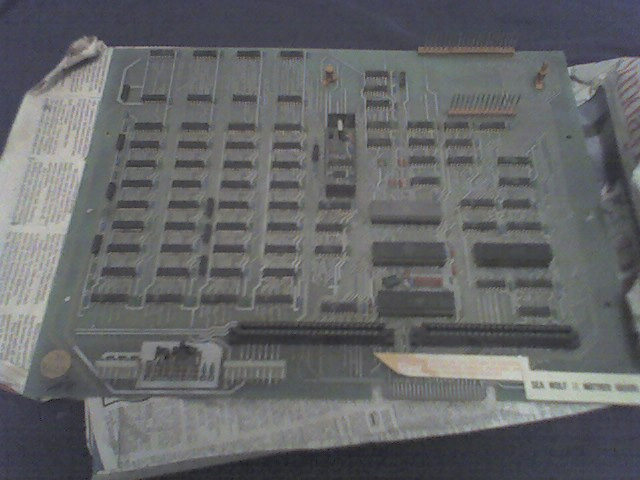

Seawolf2 Mainboard 1 thumbnail Seawolf2 Mainboard 1N thumbnail Sea Wolf II - Mainboard Overview

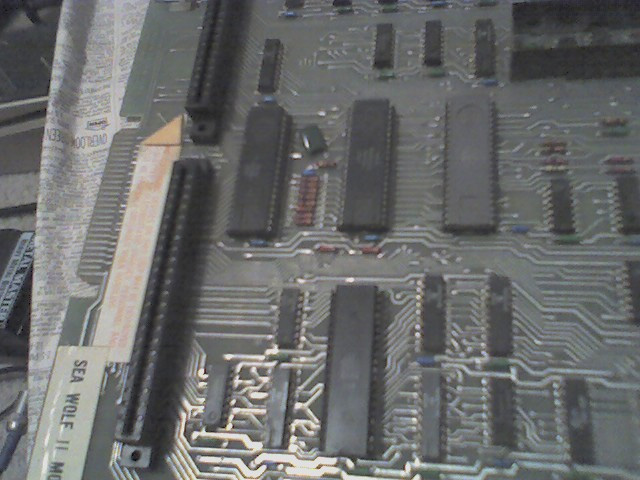

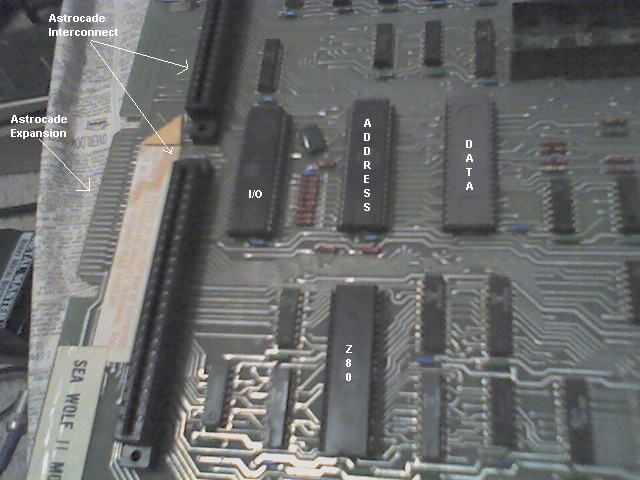

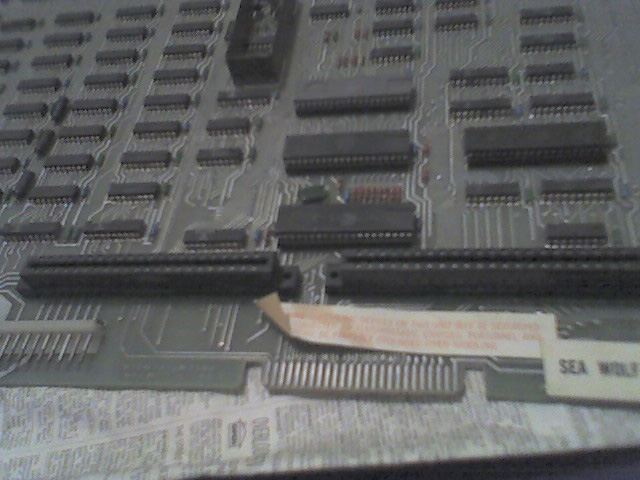

Seawolf2 Mainboard 2 thumbnail Seawolf2 Mainboard 2N thumbnail Sea Wolf II - Astrocade Expansion, Interconnect, Custom Chips and Z80 CPU

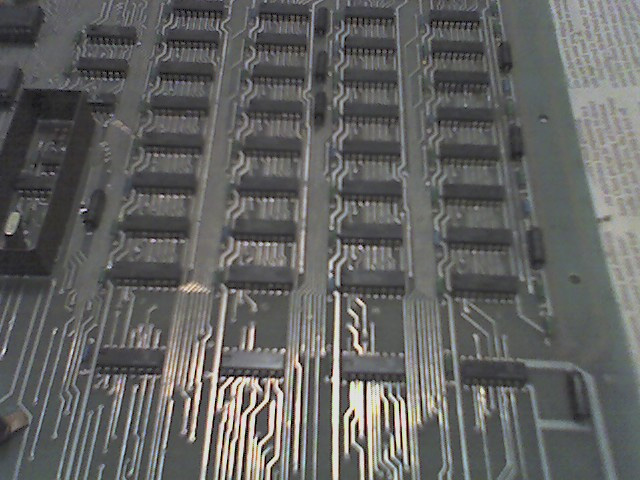

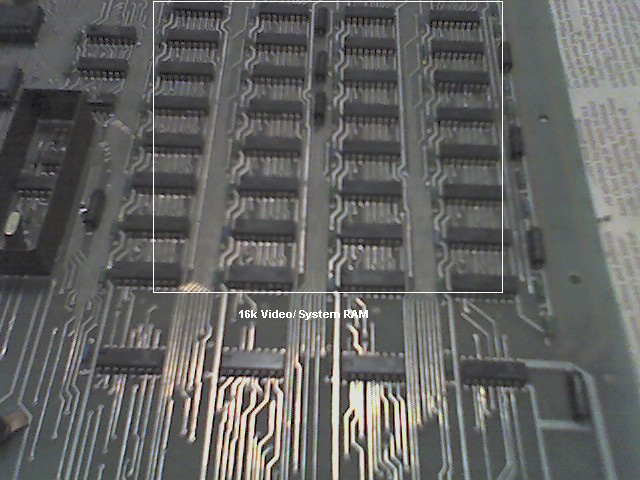

Seawolf2 Mainboard 3 thumbnail Seawolf2 Mainboard 3N thumbnail Sea Wolf II - 16K Video/System RAM

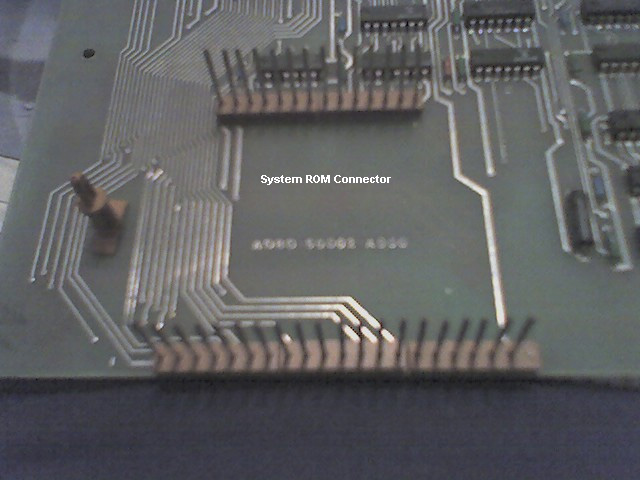

Seawolf2 Mainboard 4 thumbnail Seawolf2 Mainboard 4N thumbnail Sea Wolf II - System ROM Connector

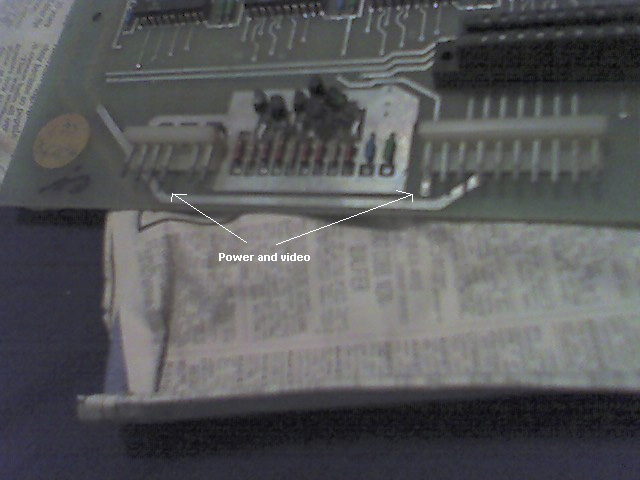

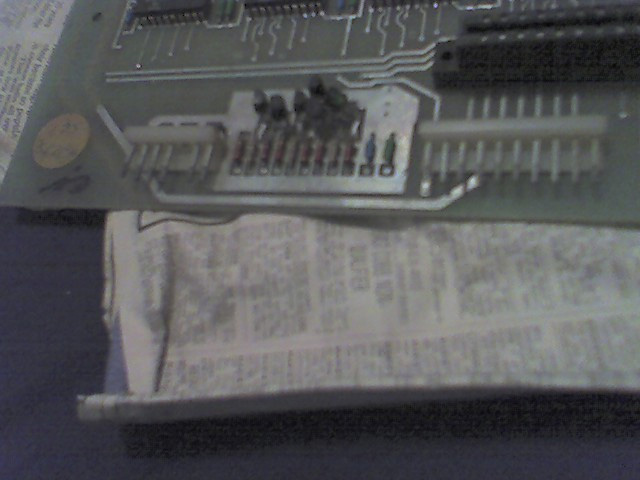

Seawolf2 Mainboard 5 thumbnail Seawolf2 Mainboard 5N thumbnail Sea Wolf II - Power and Video
Seawolf2 Mainboard 6 thumbnail Seawolf2 Mainboard 6N thumbnail Sea Wolf II - Astrocade Expansion, Interconnect, Custom Chips, Z80 CPU and 16K Video/System RAM

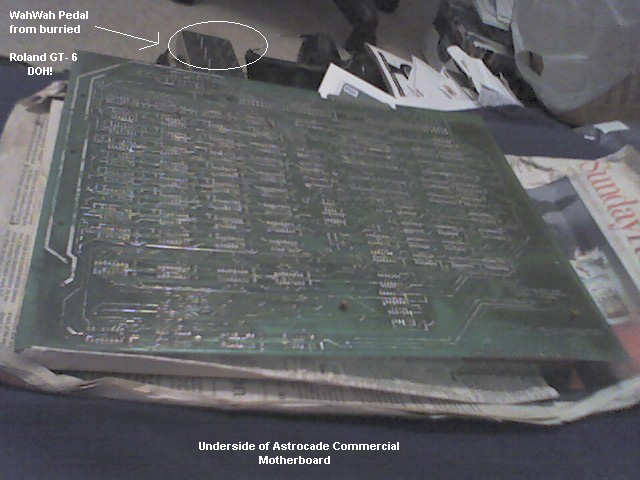

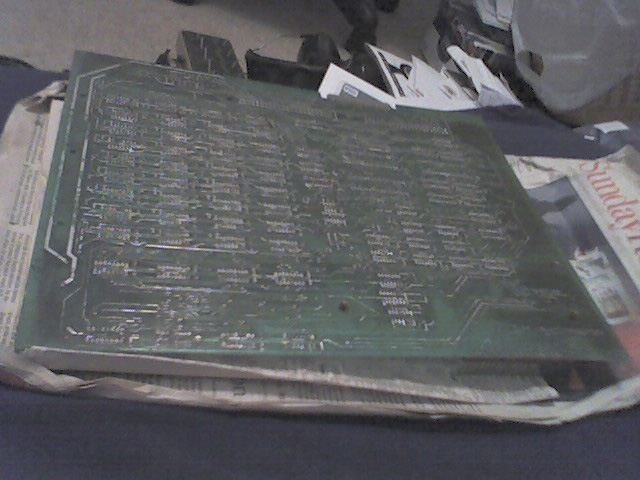

Seawolf2 Mainboard 7 thumbnail Seawolf2 Mainboard 7N thumbnail Sea Wolf II - Underside of Mainboard
