BallyAlley_r2_c1.gif BallyAlley_r2_c2.gif ASCII Keyboards BallyAlley_r2_c4.gif

      These are some of the keyboards that were often used with the Bally 300-Baud tape interface to create a keyboard for Bally BASIC. A couple of these keyboard interfaces were published in the Astrocade newsletters. Has anyone built one?

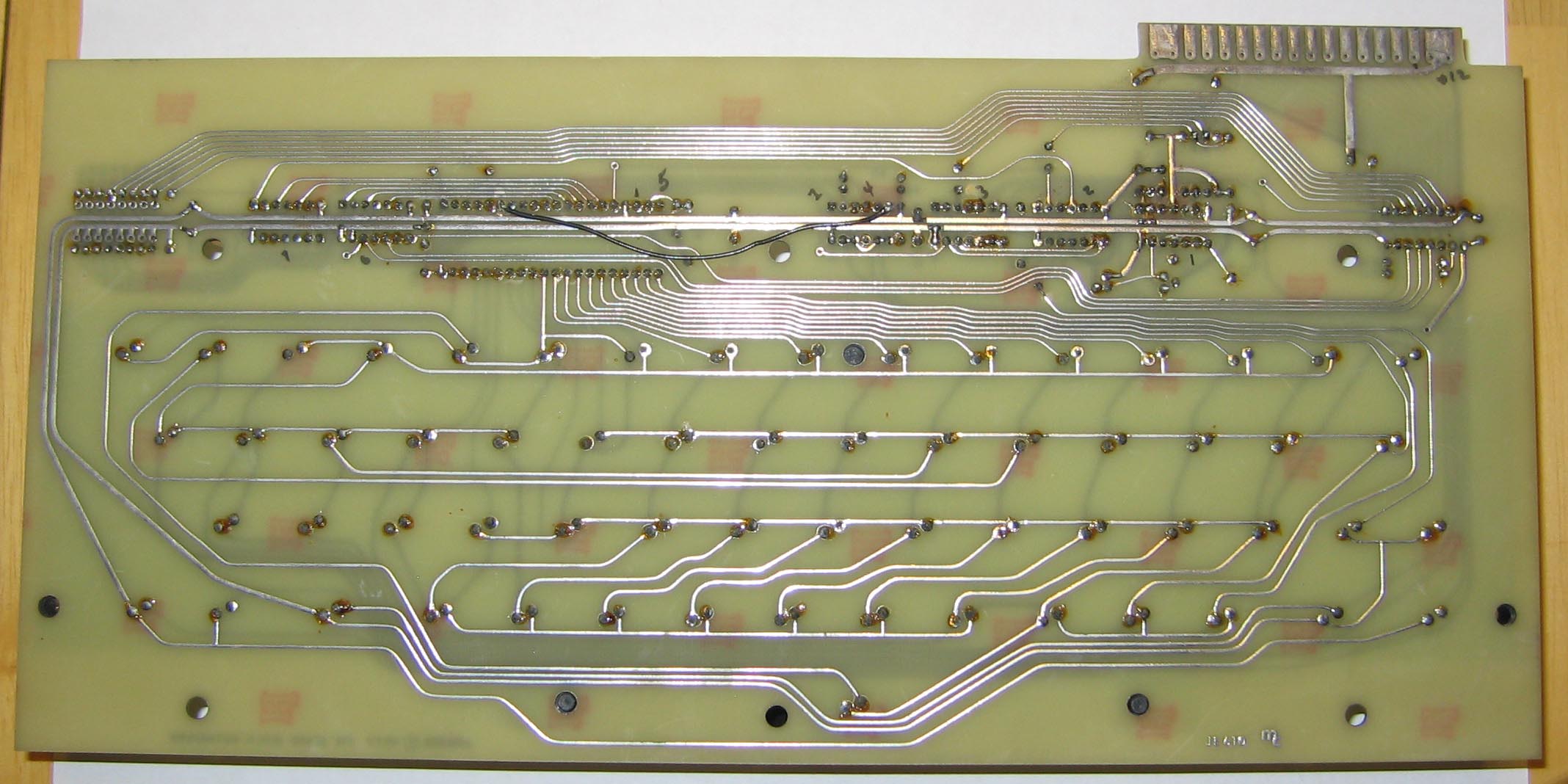

ASCII Keyboard (Top) ASCII Keyboard (Bottom) ASCII Keyboard (Model Jameco JE 610)

These keyboards, from 1979, were often hacked with the 300-BAUD tape interface to create a keyboard that could be used with Bally BASIC.

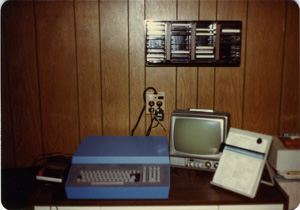

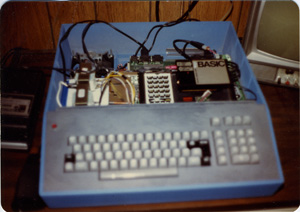

Bally Arcade in Blue Keyboard Case
Created by Herb Weintraub.

This Bally Arcade upgrade uses the Key Tronic model L1696 keyboard

These pictures are available in PNG format. Also, the schematics for this keyboard are available.
